54
1″ – 4″ Trees
Application: Trailers
Adaptable and Functional

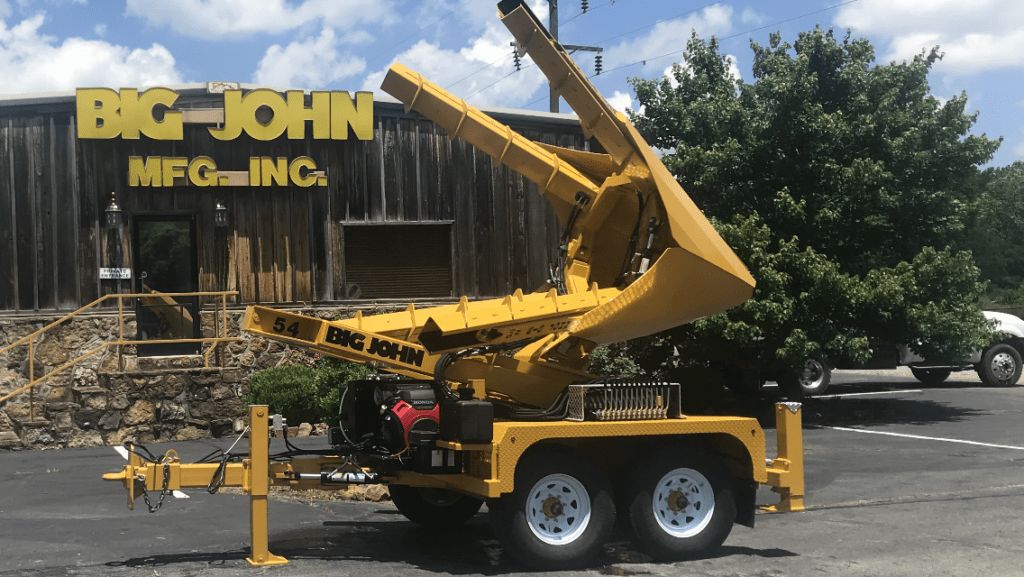

The 54 Trailer Spade features our newest trailer design. It is a versatile trailer that comes in various sizes to fit any BIG JOHN customer's needs.
The 54 Trailer Spade comes with an extendable trailer tongue, hydraulic jack, and hydraulic rear stabilizers. It also comes available in single axle 42 and 44" trailers. Our new design offers the same durable and reliable features as the rest of our BIG JOHN trailer lineup.
Specifications
| MODEL 54 SPECS | |
|---|---|
| Nominal Tree Trunk Diameter | 1″– 4″ |
| Root Ball Width | 44″ |
| Root Ball Depth | 36″ |
| Root Ball Weight | 1,200 lbs |
| Total Machine Weight | 2,100 lbs |
| Blade Tower Height | 83″ |
| Gate Opening | 24″ |
| Opening Width | 96″ |
| Number of Spades | 4 |
| Hydraulic Gate Lock | Yes |
| Adjustable Hydraulic Pads | Yes |
| Adjustable Mechanical Pads | Yes |
| Spade Material | AR400 |
| Drive System (Minimum GPM) | 10 – 16 |

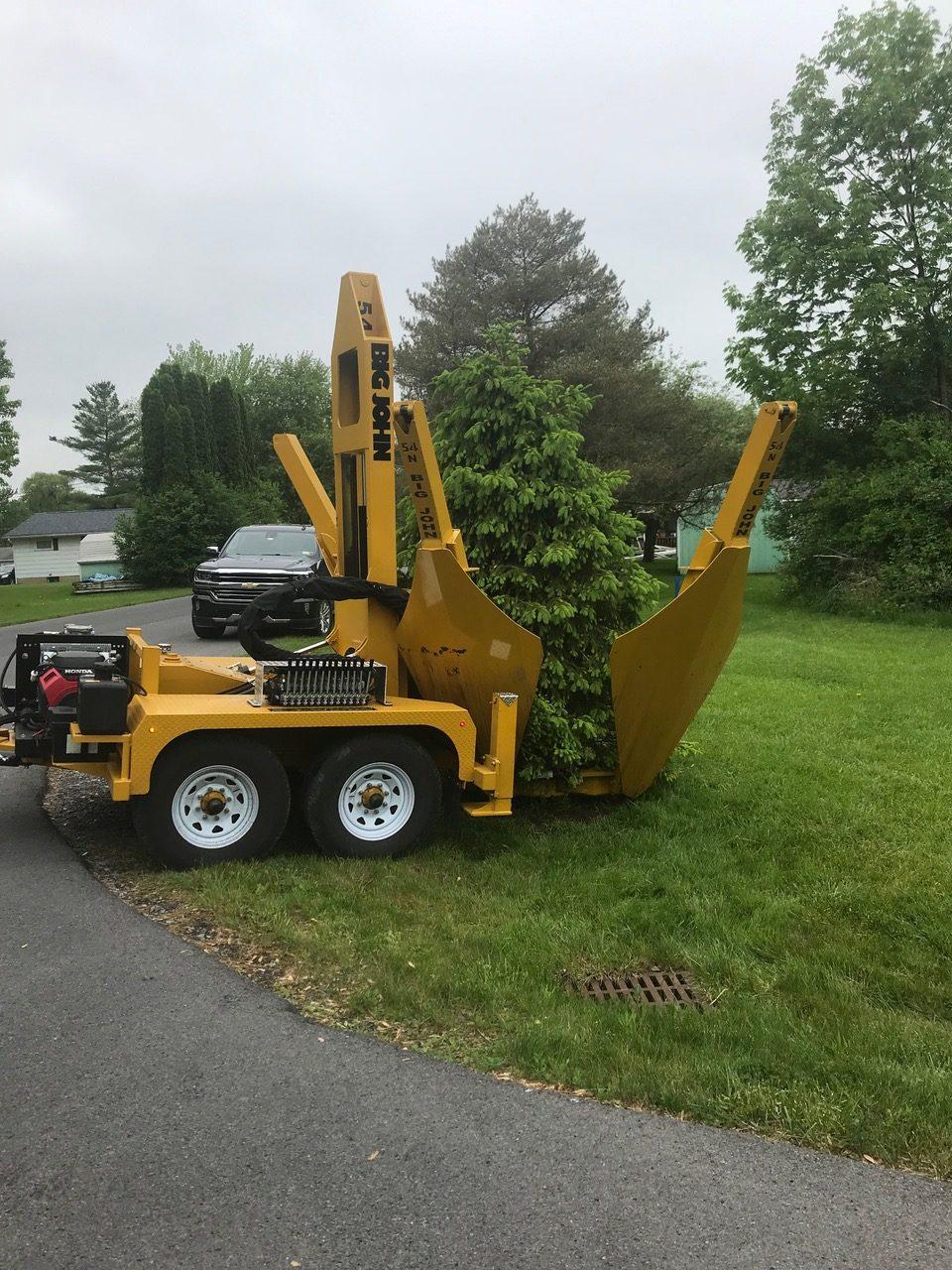

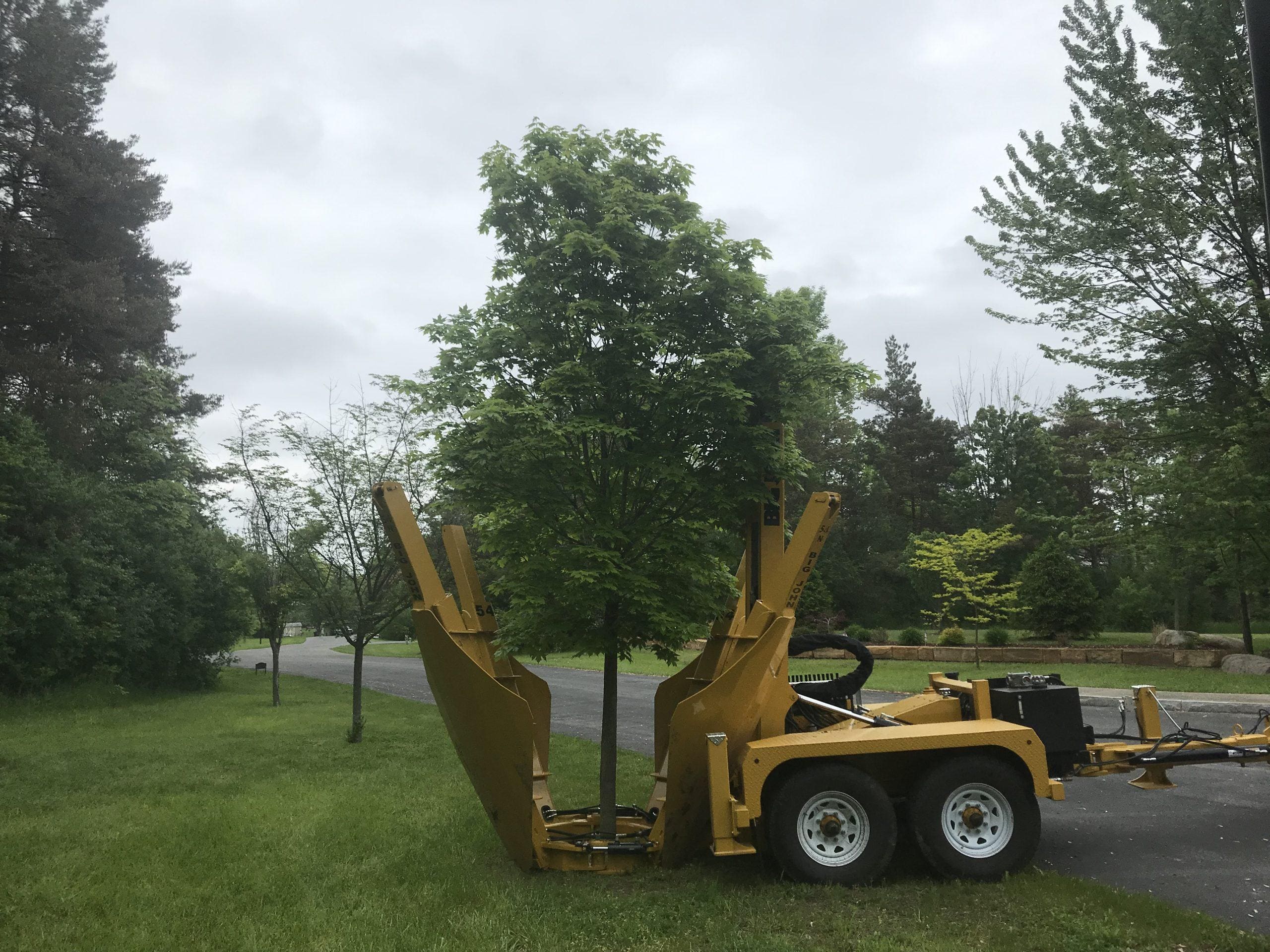

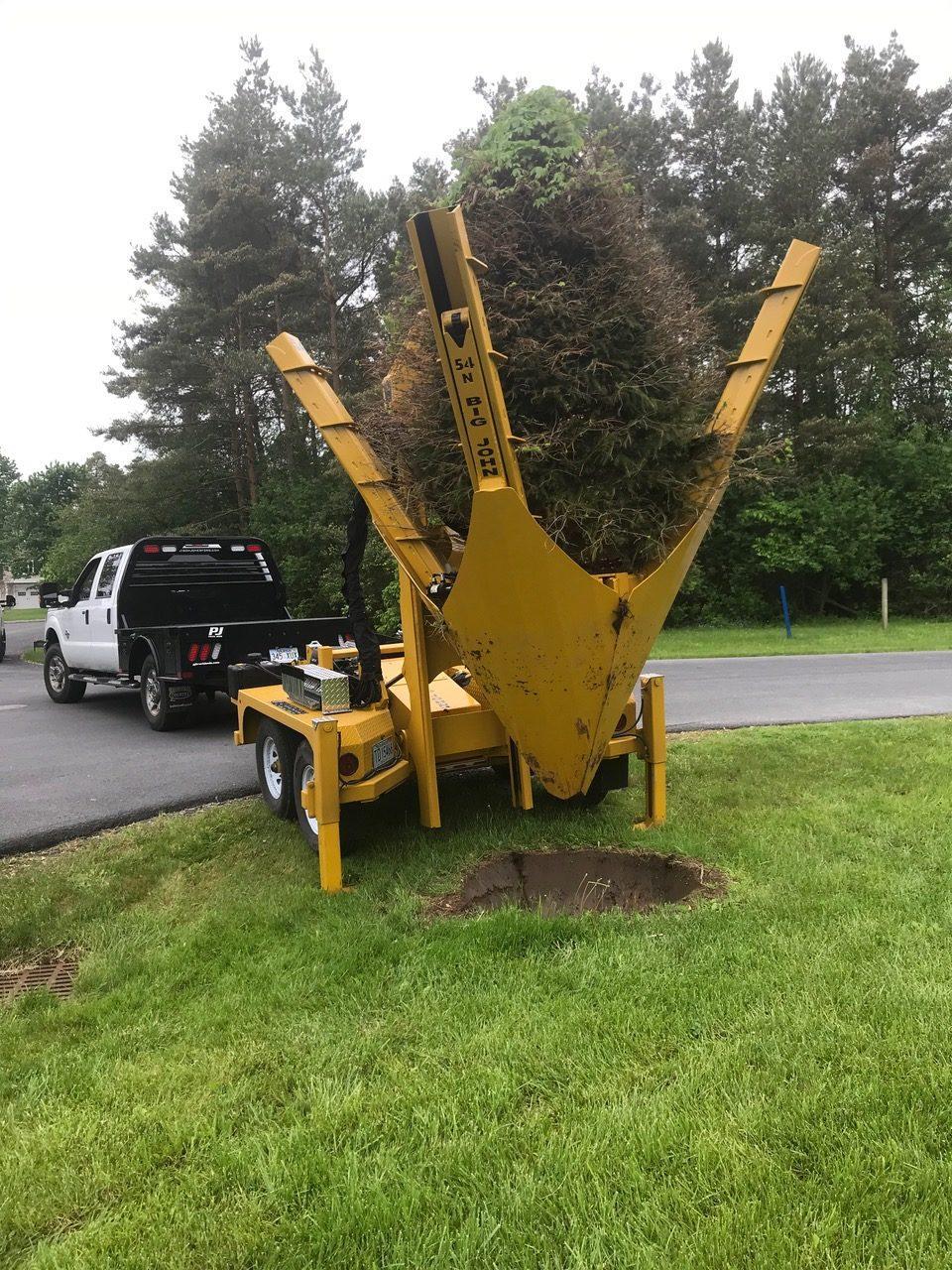

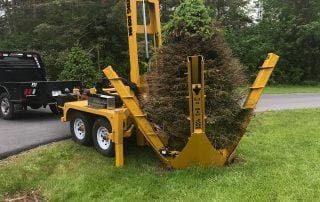

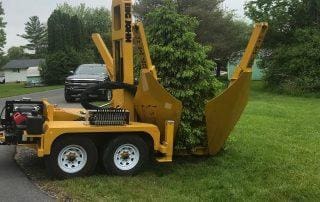

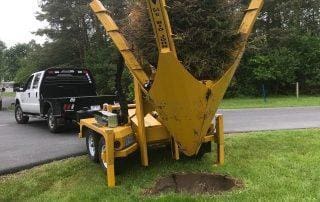

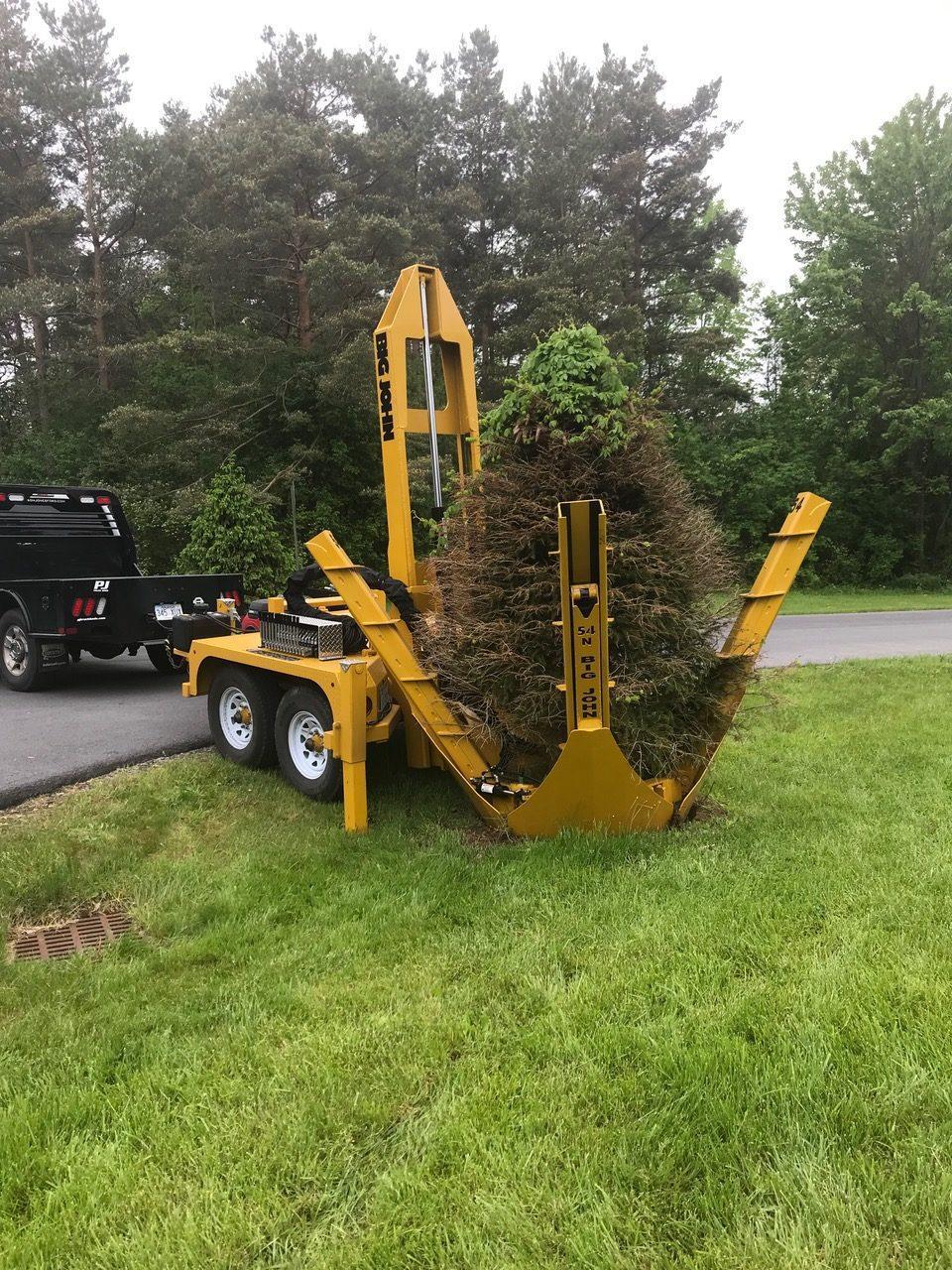

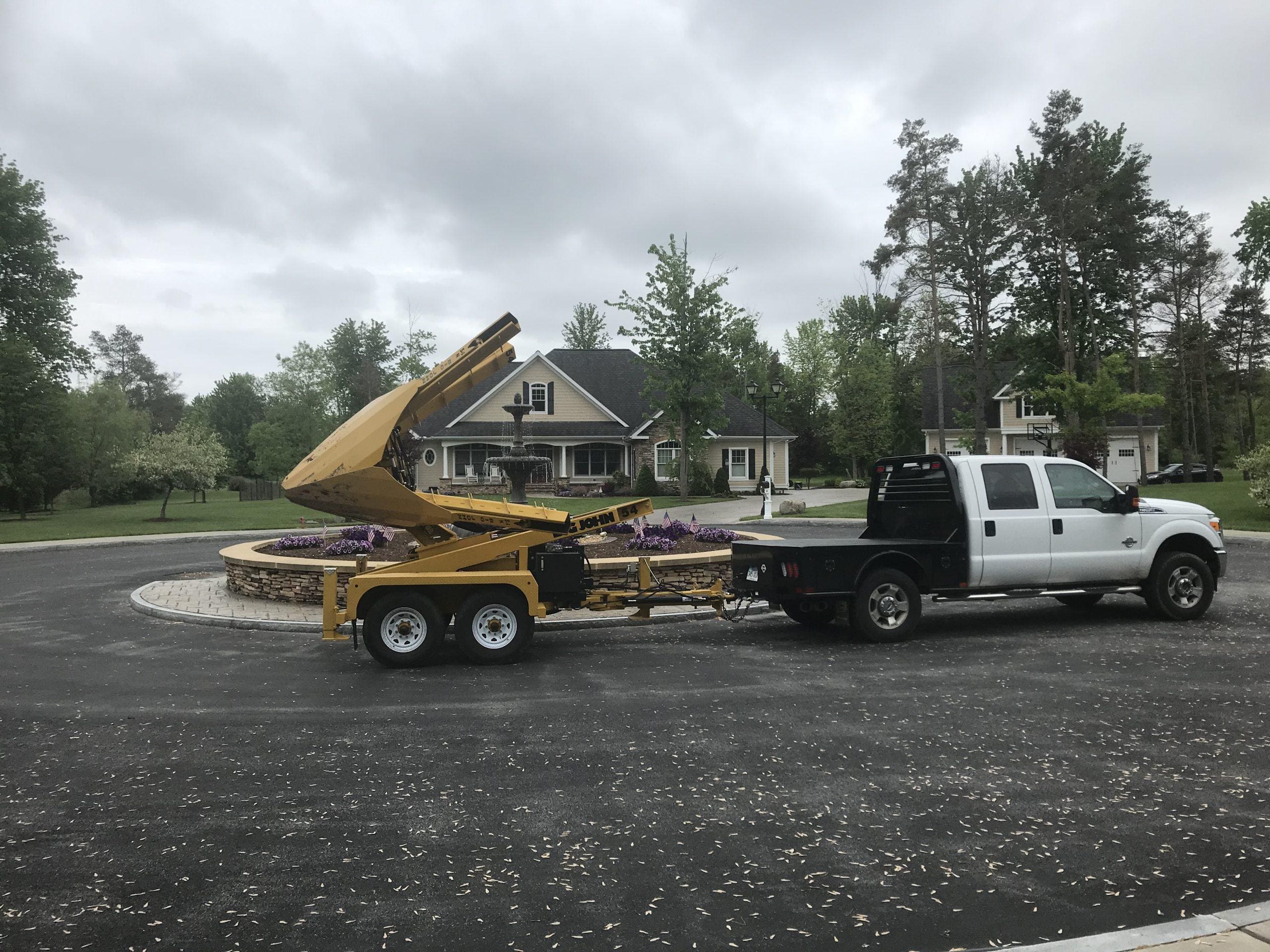

Trailer Spade Gallery
