Model 36
1″ – 3″ Trees

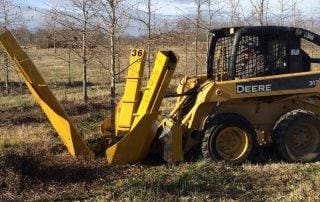

Application: Skid Steers

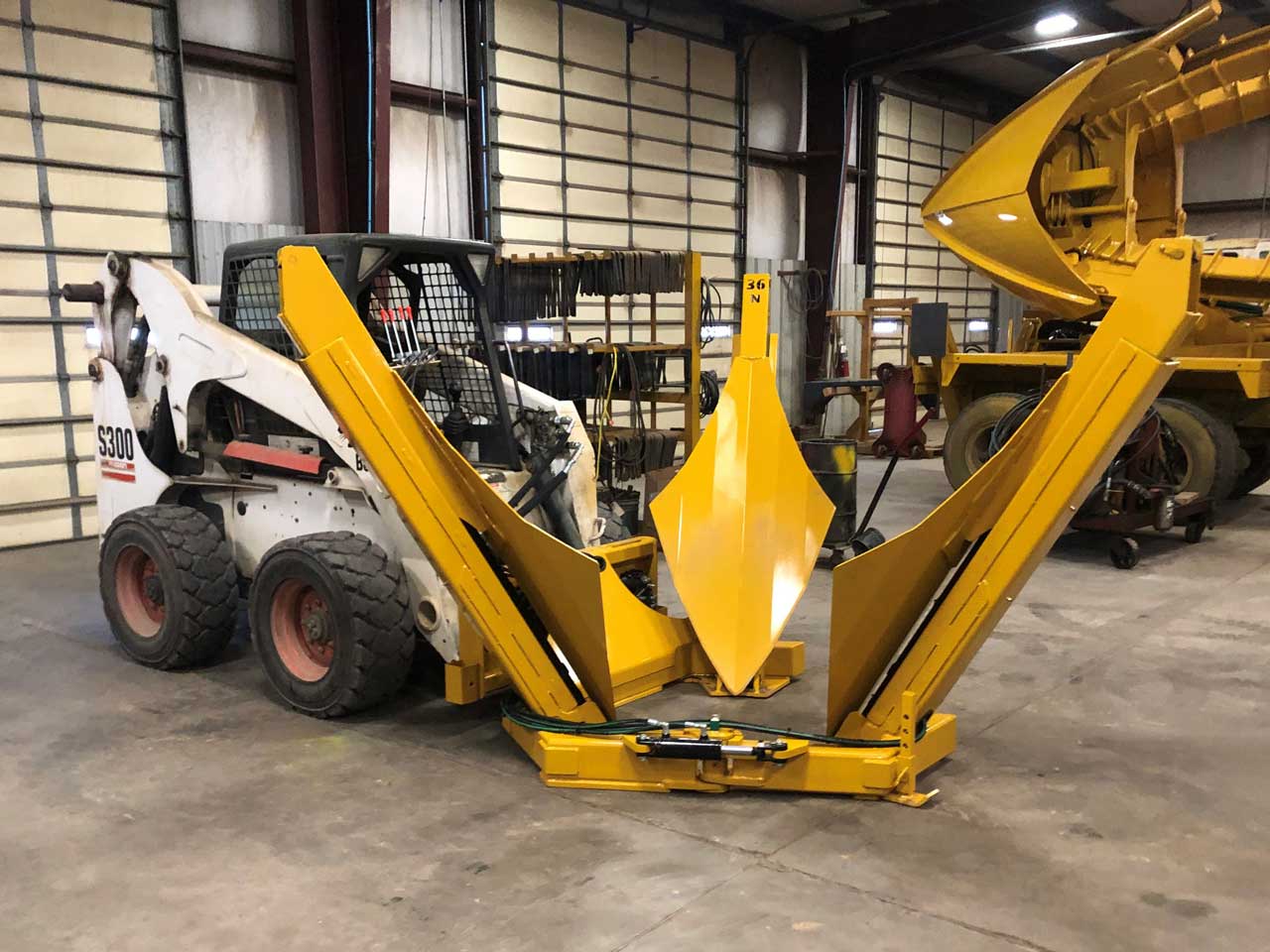

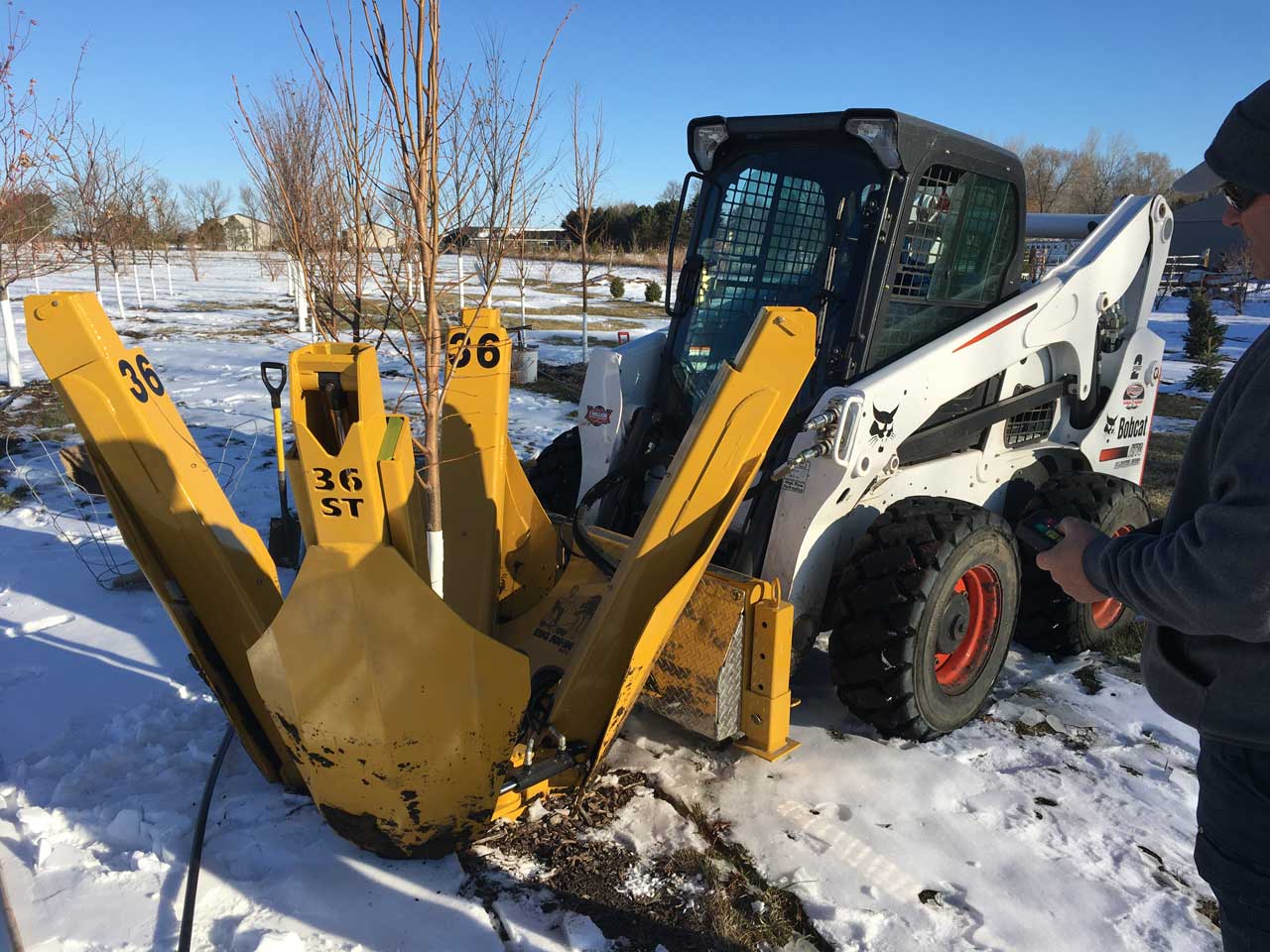

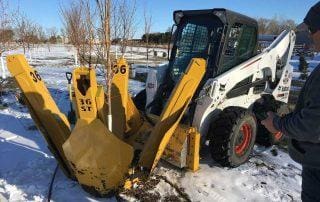

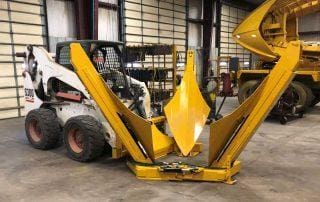

Inside Frame | Outside Frame | 3 or 4 Bladed

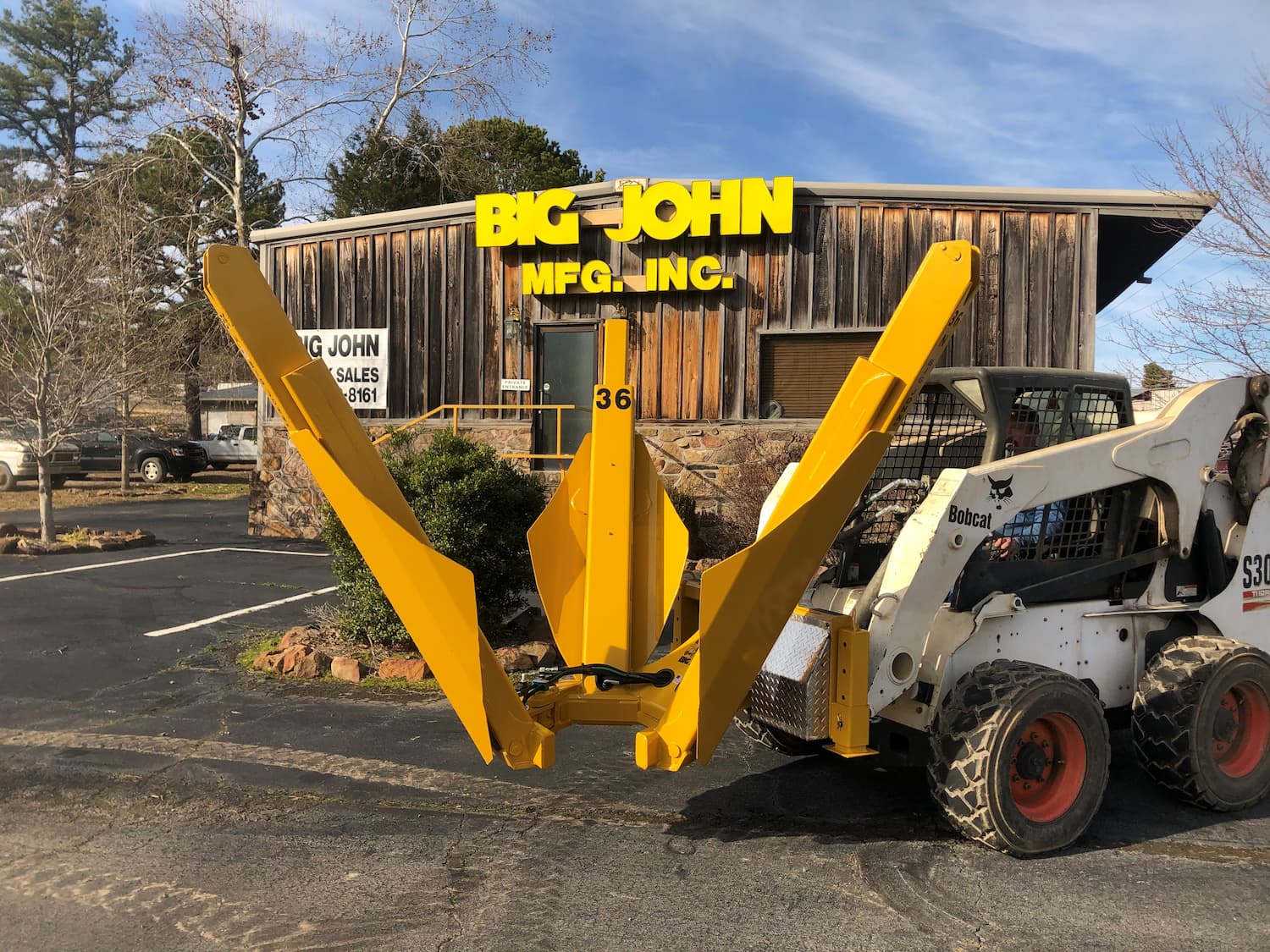

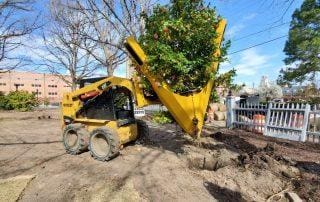

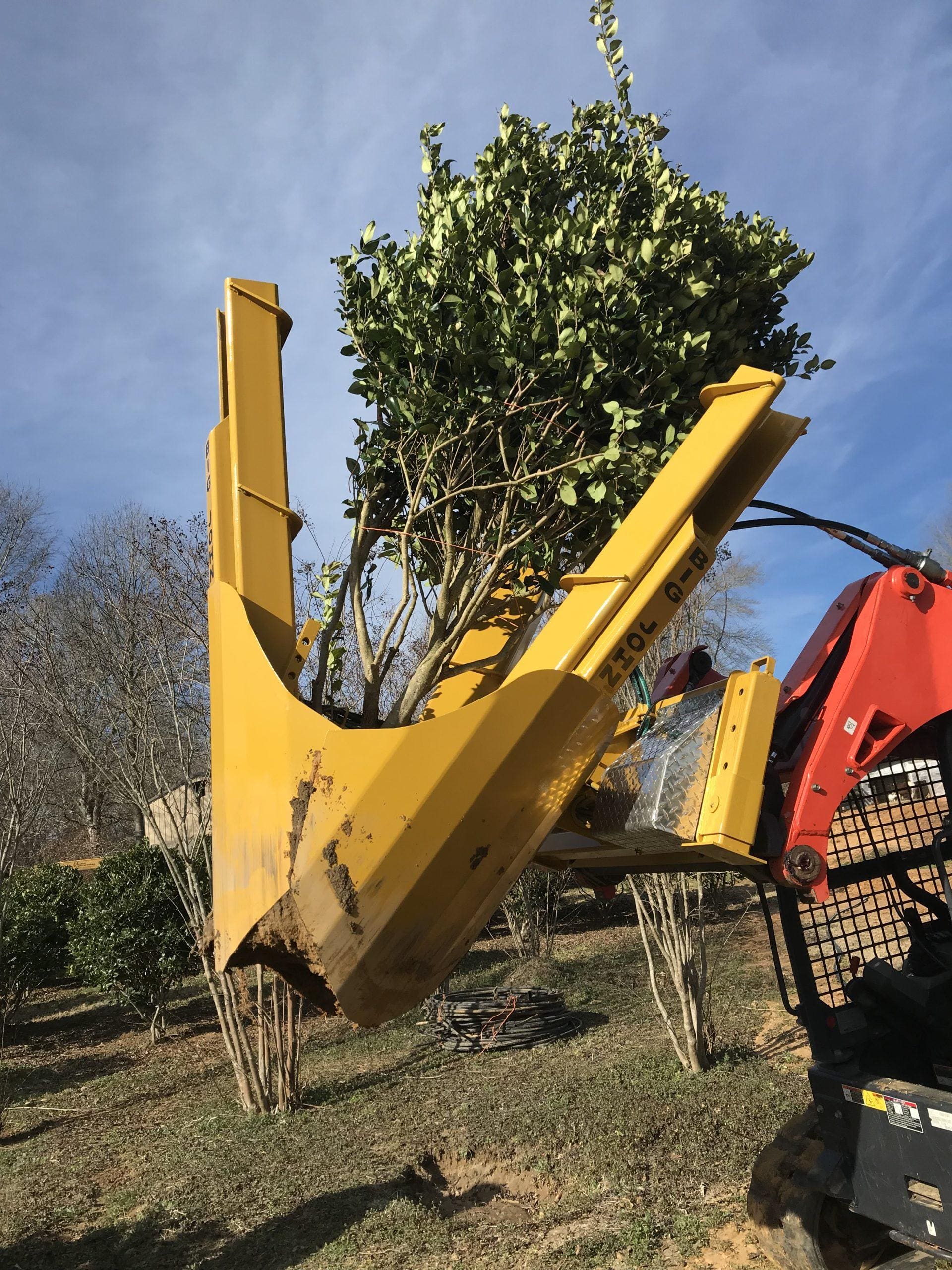

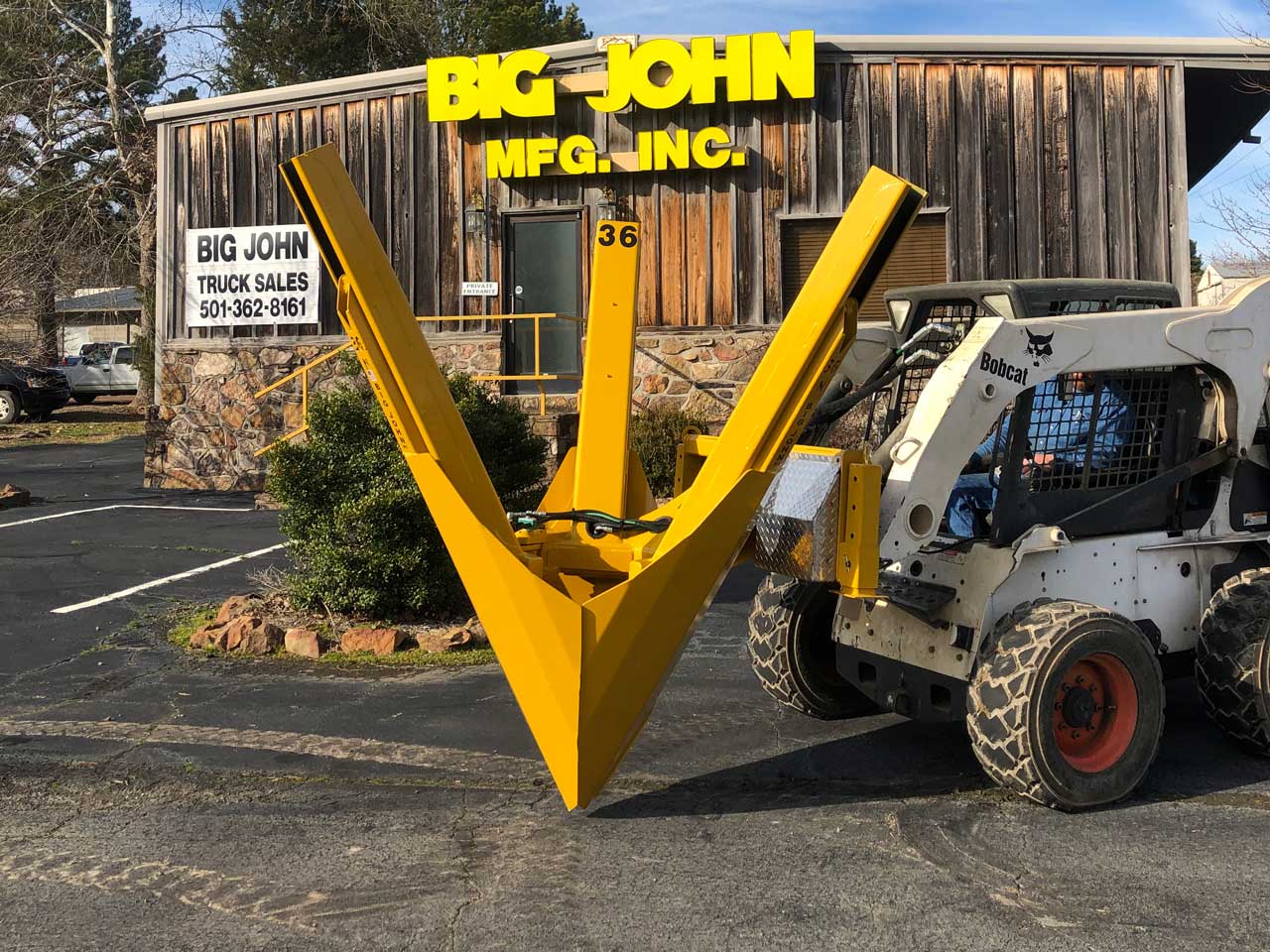

The Model 36" BIG JOHN nursery digger is light weight and hosts cold formed straight blades. It’s made to move trees 1” to 3” in diameter and comes complete with electric valve bank and wireless remote control.
Joining the BIG JOHN family means getting exceptional customer service for the life of your spade as well as customized options suited to your nursery needs. We offer wireless remote or cable controls to make operating your spade easier and faster for different conditions.

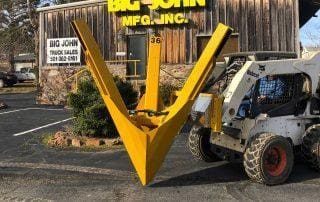

Available in pointed, semi-truncated, or truncated blades:
Specifications
| SPECS | 36 | 36-3ON | 36-4ST | 36-3IN |
|---|---|---|---|---|
| Tree Trunk Diameter | 1″ – 3″ | 1″ – 3″ | 1″ – 3″ | 1″ – 3″ |
| Root Ball Width (Adjustable) | 36″ | 36″ | 36″ | 36″ |
| Root Ball Depth (Adjustable) | 29 3/4″ | 30″ | 23″ | 30″ |
| Root Ball Weight | 795 lbs | 800 lbs | 935 lbs | 800 lbs |
| Total Machine Weight | 1,900 lbs | 1,900 lbs | 2,000 lbs | 2,000 lbs |
| Blade Tower Height (down position) | 57″ | 75 7/8″ | 55 3/4″ | 73″ |
| Gate Opening | 13″ | 24″ | 16″ | 30″ |
| Opening Width | 111 1/2″ | 75 7/8″ | 88″ | 113″ |
| Number of Spades | 4 | 3 | 4 | 3 |
| Hydraulic Gate Lock | Yes | Yes | Yes | Yes |
| Adjustable Mechanical Pads | No | Yes | Yes | Yes |
| Spade Material | AR400 | AR400 | AR400 | AR400 |
| Drive System (Minimum GPM) | 10 – 16 GPM | 10 – 16 GPM | 10 – 16 GPM | 10 – 16 GPM |
